Basic syringe pump (2 Channels)

Basic syringe pump (2 Channels)

Catalog Number:
SP01364066DKI
Mfr. No.:
SPLab02-LU
Price:
Size:
each
Quantity:
Add to Cart:
    • Overview
      • The syringe pump with infusion/withdrawal mode, stainless steel body, and large-screen chromatic LCD is easy to operate. It can install and fix different types of injectors or syringes in the same time, and it is suitable for transferring micro flow rates with high precision (non-medical).

        ▪ Colorful LCD display: Friendly interface, large-screen LCD display every technical parameter in real time.
        ▪ Input injector inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
        ▪ Two measurement mode for selection: Infusion volume--Infusion rate, Infusion volume--Infusion time
        ▪ 6 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous and additional mode (infusion/withdrawal, then exclude bubble). The parameters of each working mode saving separately.
        ▪ Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.
        ▪ Online flow rate modification function: The pump is running, without stopping, adjust the flow rate at any time to meet complex application.

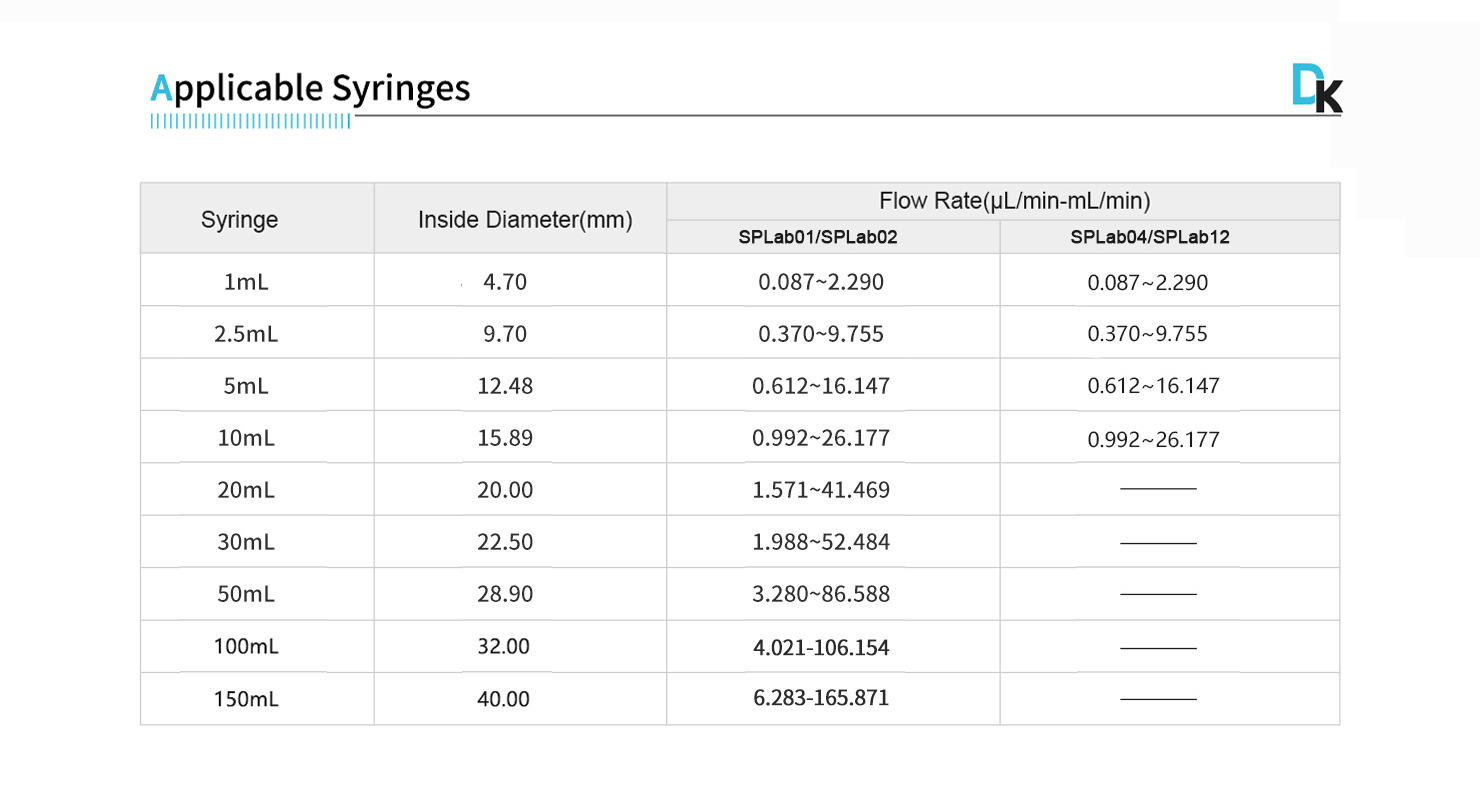

        Applicable Syringes of Basic Syringe Pump (2 Channels)

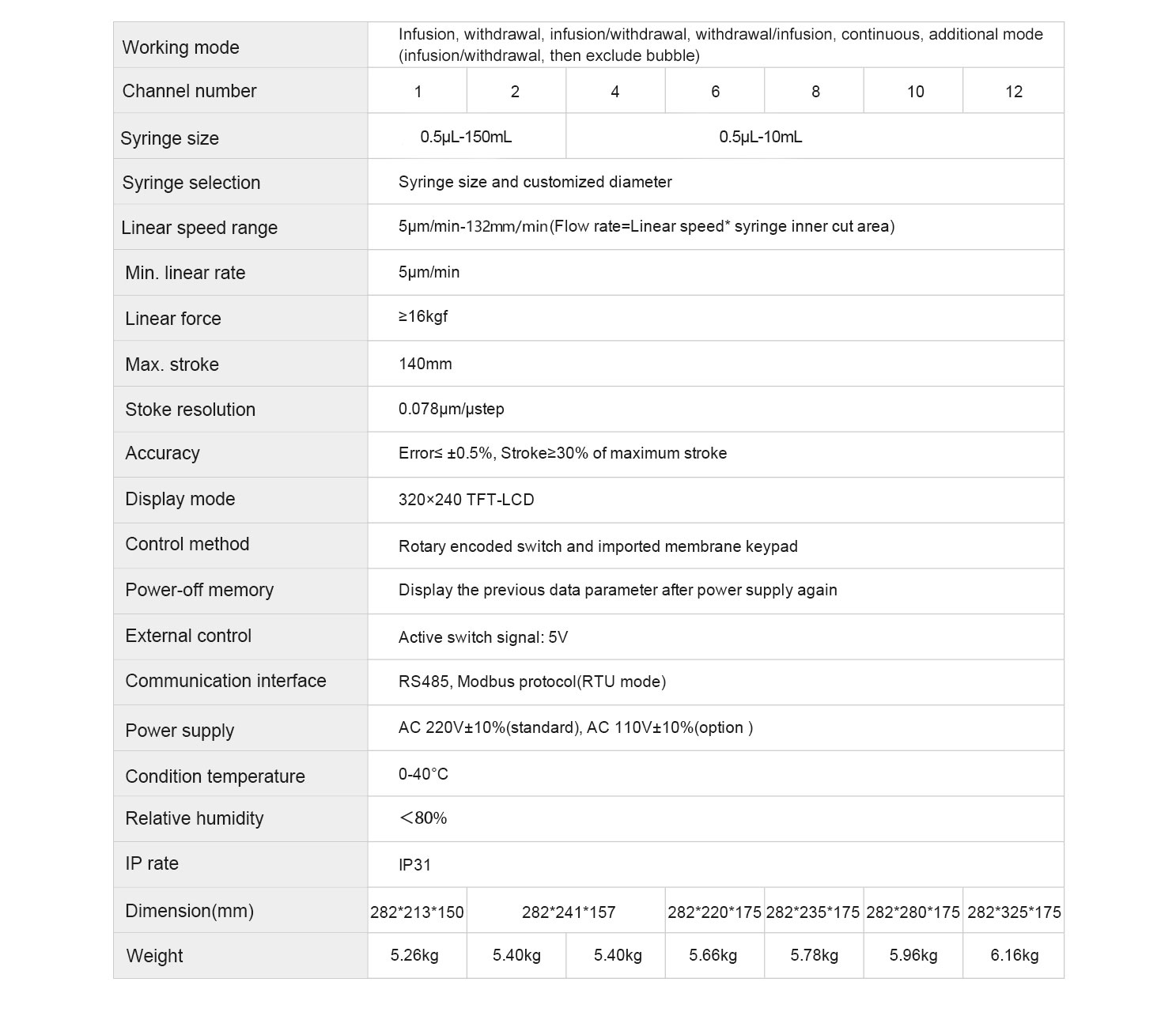

        Technical Parameters of Basic Syringe Pump (2 Channels)

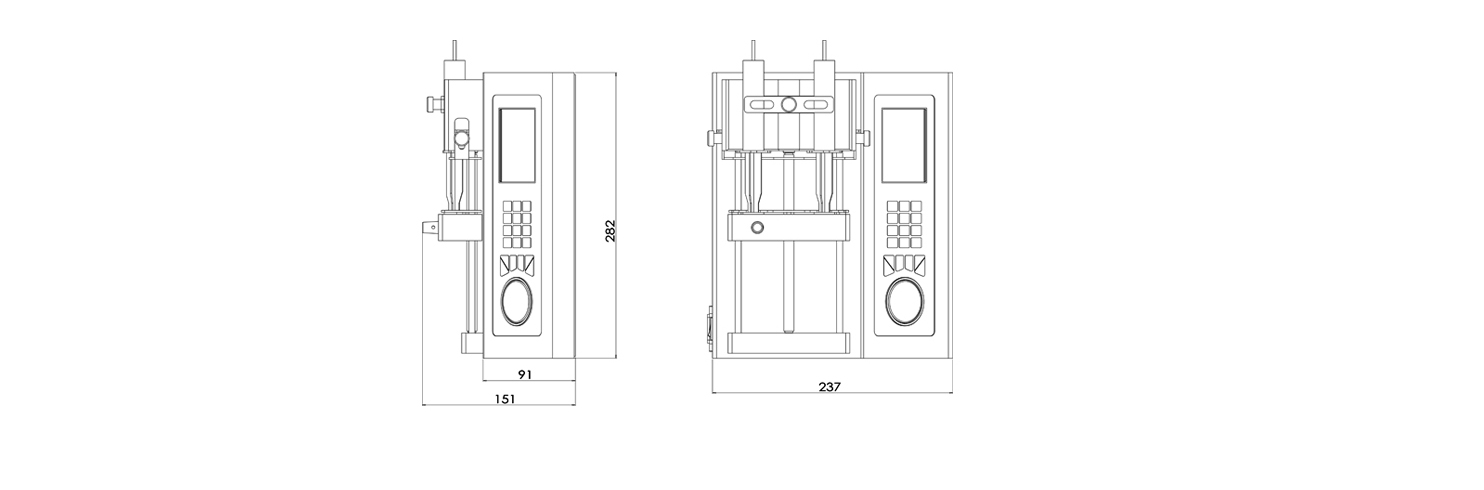

        Product Dimensions of Basic Syringe Pump (2 Channels)

        Please contact us at for specific academic pricing.

    • Properties
      • Categories
        Basic syringe pump
        Other Properties
        Flow Rate : 0.001uL/min-165.8mL/min
        Linear speed range : 5μm/min-132mm/min (Flow rate = Linear speed * syringe inner cut area)
        Min. linear rate : 5μm/min
        Linear force : ≥16kgf
        Max. stroke : 140mm
        Display mode : 320×240 TFT-LCD
        Control method : Rotary encoded switch and imported membrane keypad

        * For Research Use Only
